pipe hanger & Support
Pipe supports are designed to support insulated or non-insulated pipes allowing vertical adjustment and limited movement in the piping system. A wide range of pipe supports are available for various applications including, Clevis Hanger, Loop Hanger, J-Hanger, Bell Hanger, Wire Pipe Hanger, Milford Hanger, DWV Pipe Hanger...etc.
Pipe fasteners are designed for support and attachment of pipe to structural members. A wide range of pipe supports are available for various applications.

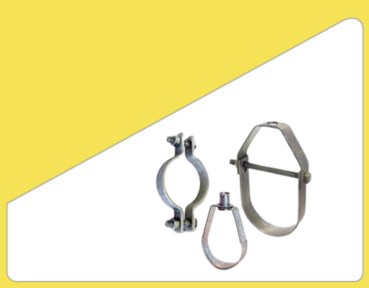

HANGERS
- Material: Mild Steel , EPDM Rubber
- Type: Clevis, Sprinkler, Hanger with EPDM lining, U-Strap
- Riser Clamp, U Bolt, Rubber Support insert
- Size range: ½” to 30”
- Standard: ANSI / MSS SP-58 & SP-69
- Origin: India
ROLLERS
- Material: Mild Steel
- Type: Roller Stand, Roller Chair, Roller Hanger, Pipe Roller
- Size range: 2” to 30”
- Standard: ANSI / MSS SP-58 & SP-69
- Origin: India

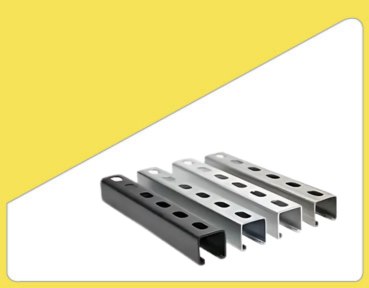

CHANNELS & BARS
- Material: Mild Steel
- Type: Slotted Channels, Angle Bars
- Length: 3Mtrs, 6 Mtrs
- Origin: India

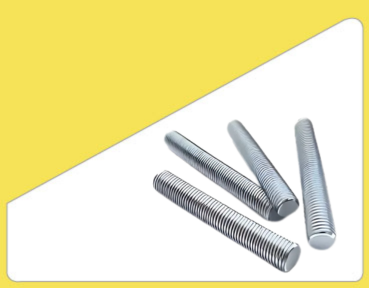

THREADED ROD FASTENERS & ANCHORS
- Material: Mild Steel, Carbon Steel
- Type: Threaded Rod, Bolts, Nut, Washer, Anchors, G-Clip & beam Clamp
- Standard: ASTM , ASME, BS, DIN, BS EN ISO / JIS
- Origin: India
ANTI VIBRATION - SPRING
- Spring Hanger
- Closed Spring Mount
- Open Spring Mount

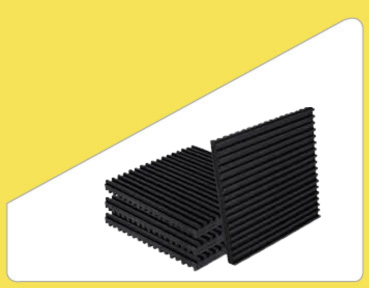

ANTI VIBRATION - PADS
- Ribbed Mounting Pad
- Waffle Pads
- Crock Sandwich Pads
- Metal Sandwich Pads

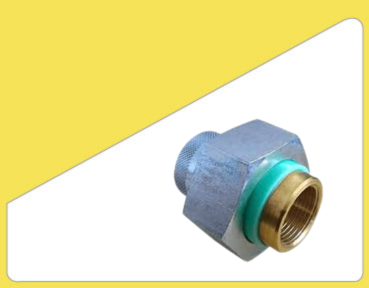

DIELECTRIC FITTINGS
- Dielectric Union
- Dielectric Flange

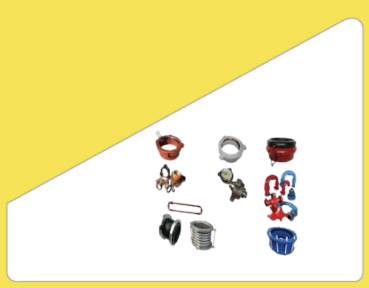

EXPANSION JOINT
- Threaded
- Flanged
- i. Single Sphere
ii. Double Sphere
- i. Single Sphere

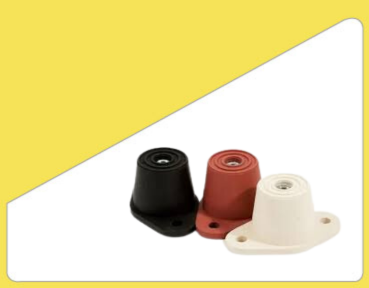

ANTI VIBRATION-RUBBER
- Rubber Hanger
- Duct Mount
- Turret Mount
The Tembo Seven Star Range
Ajal Arabia stocks the Tembo Seven Star pipe hanger and support range — the clamps, hangers, supports, and accessories that hold every meter of pipe in place across HVAC, plumbing, fire protection, and gas installations. One brand across the support schedule keeps procurement simple and submittals consistent.
| Product family | What it does |
|---|---|
| Pipe clamps | Two-bolt and three-bolt clamps for vertical risers and lines subject to thrust or vibration |
| Pipe hangers | Clevis hangers for suspended horizontal steel pipe; loop (split-ring) hangers for small-bore non-insulated lines |
| J-hooks | Single-side support where a full loop is impractical — tight ceiling voids and retrofit work |
| U-bolts | Anchoring pipe to steel, concrete, or trapeze; securing lines and guiding thermal expansion |
| Pipe straps | One-hole and two-hole straps for fixing small-bore pipe to walls, soffits, and framing |
| Pipe supports & anchors | Supports for floor-mounted and rooftop lines; riser clamps; anchors that fix the pipe at defined points |
| Dielectric fittings | Electrically isolate dissimilar metals (e.g. copper-to-steel) to prevent galvanic corrosion |
| O-rings | Sealing and cushioning duties — vibration isolation and protection of coated pipe at clamp points |
| Gas kits | Pre-assembled clips, spacers, and fixings sized for gas pipe runs |
| Fasteners | Bolts, nuts, and washers in the coatings to suit the environment — plain zinc indoors, hot-dip galvanized or stainless for humid, coastal, and external runs |
Sizing a hanger schedule? Send us your pipe sizes and insulation details and we will match the right Tembo Seven Star components — hangers sized to pipe outside diameter, rods to the load, anchors to the structure.
Applications
- HVAC — suspension of chilled water and condenser water pipe in plant rooms, risers, and ceiling voids across Riyadh, Jeddah, and Dammam towers
- Plumbing — domestic water distribution, drainage stacks (riser clamps at each floor), and sanitary lines
- Fire protection — sprinkler branch lines and mains, supported to NFPA 13 spacing and support rules
- Gas distribution — gas kits and strapping for natural gas pipe runs in commercial kitchens and residential blocks
- Industrial — U-bolts, anchors, and supports for utility piping in Jubail and Yanbu plants, with corrosion-appropriate fastener coatings
Frequently Asked Questions
How do I size a Tembo Seven Star hanger?
Size the hanger to the pipe’s outside diameter — not the nominal bore. A 2″ steel pipe has an OD of 60.3 mm, and the clamp or hanger must match that. For insulated lines, size to the OD of the insulation plus a protection shield, and never clamp directly onto insulation.
Clevis hanger or loop hanger — which do I need?
Clevis hangers for suspended steel pipe runs — adjustable and the MEP standard. Loop (split-ring) hangers for small-bore, light-duty, non-insulated lines such as copper plumbing, where economy and speed matter. Tell us the pipe material and size and we will confirm the right type.
Do you supply the rods, anchors, and fasteners with the hangers?
Yes — threaded hanger rods, anchors, bolts, nuts, and washers are part of the Tembo Seven Star support package. Order them together with the hangers; a hanger without its rod is a site delay. Match fastener coatings to the environment — hot-dip galvanized or stainless for coastal and external work.
